MC250 Plus K

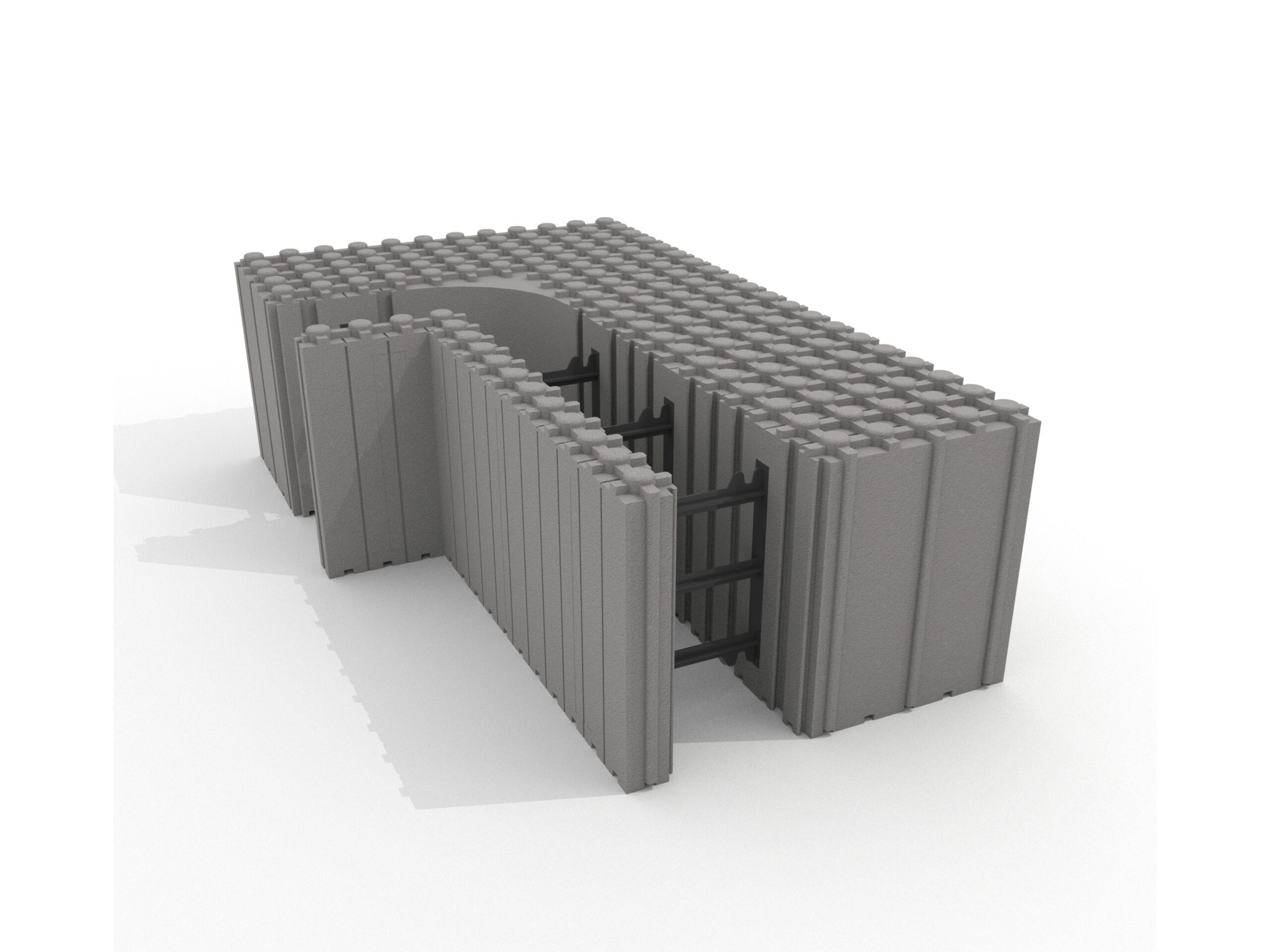

Corner Block MC250+ K

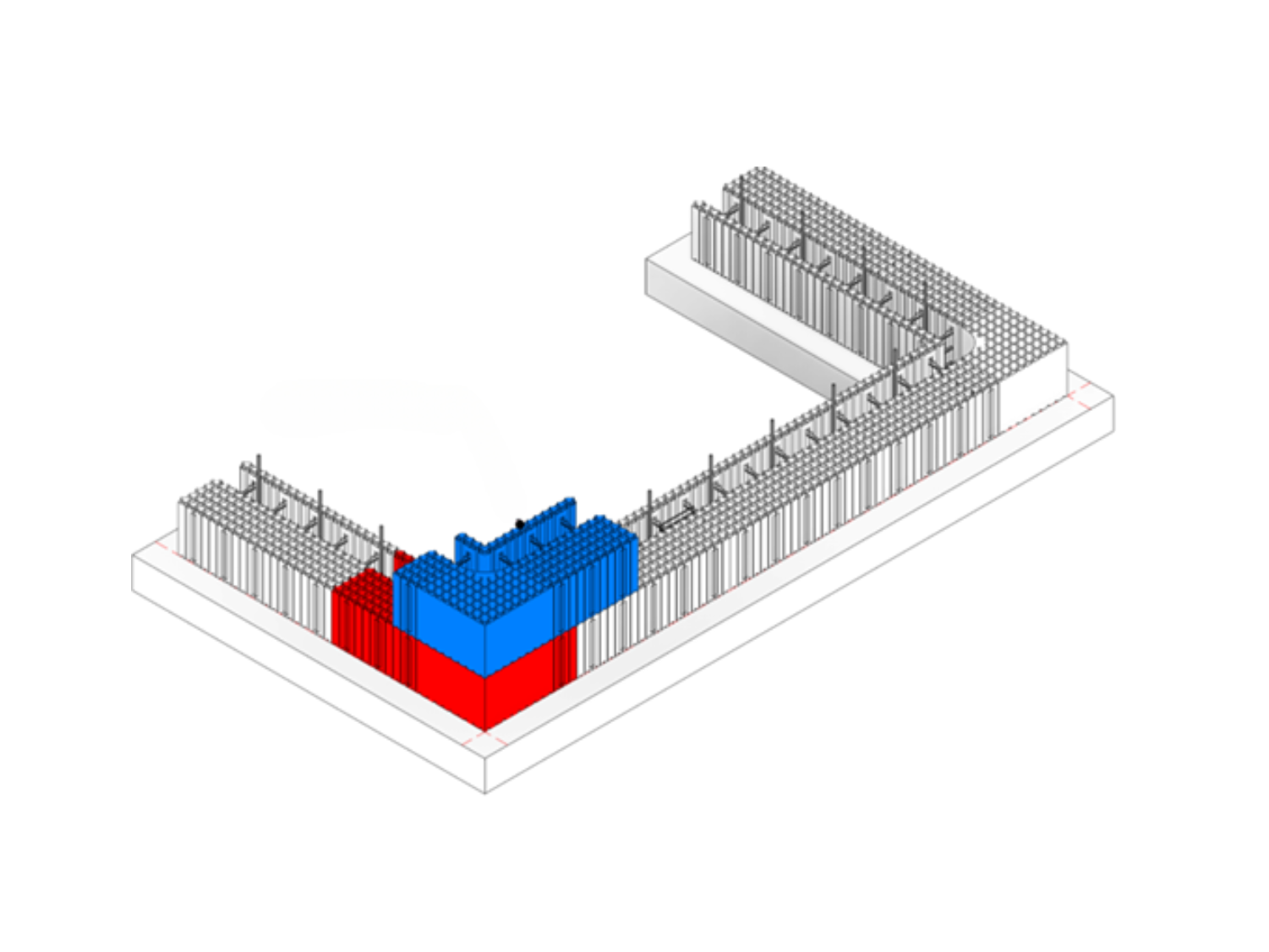

Pre-manufacturated block with plastic ties for 90° right/left corner construction. This block can be used with both -our ICF system’s PLUS blocks with HDPE ties and Standard blocks with EPS ties.

External thermal insulation layer 250mm.

PRODUCT INFORMATION

Material: Expanded Polystyrene (EPS) with graphite filler

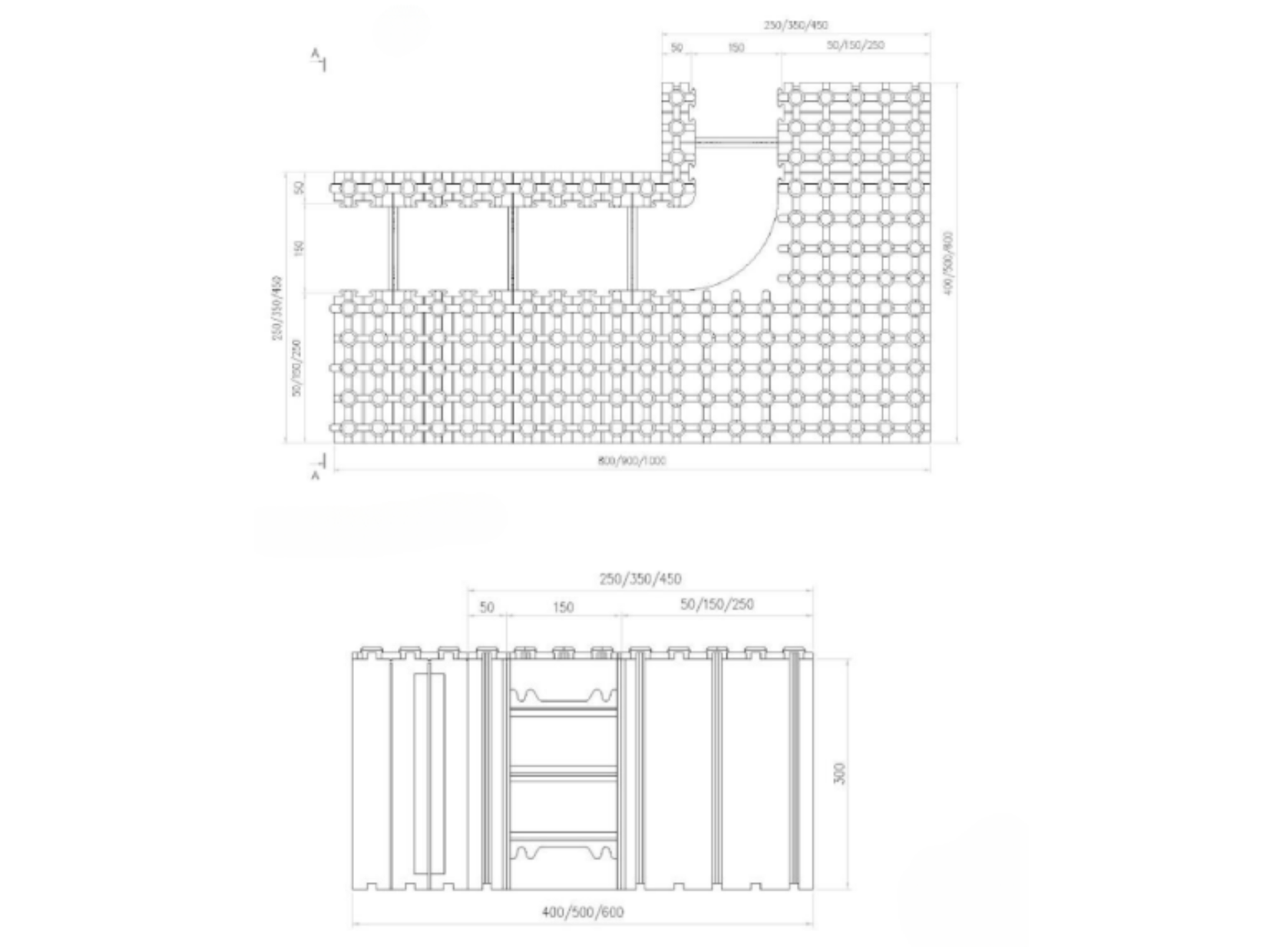

Dimensions (mm): 1000x300x600

Insulation thickness (mm):

  • External insulation thickness: 250
  • Internal insulation thickness: 50

Concrete casting strip (mm): 150

Total wall thickness (mm): 450

Block side plane area (m2): 0,30

Block ties: plastic (HDPE)

Block weight (kg): 3.484

TECHNICAL INFORMATION

Thermal conductivity of insulation material: λD ≤ 0,031 W/(m-K)

Thermal resistance*: 9.151m2-K/W

Compressive strength: ≥ 300 kPa

Tensile strength: ≥ 280 kPa

Long-term water absorption: ≤ 4%

Fire reaction class: E

* for explanation, refer to the Declaration of performance

Declaration of Performance

  • For building the structure of the building (load-bearing external walls)

Always choose the type of block according to the project documentation!

PRICES

Price per 1 unit: 41.75 EUR excl. VAT (incl. VAT 21% 50.52 EUR)

Price per m2: 86.98 EUR excl. VAT (incl. VAT 21% price 105.25 EUR)

Wholesale price: calculated individually based on the building project and total volume of material.

We provide a free calculation of ICF material for your building project!

Receive a price quote

Prices are informative and subject to change.

DELIVERY

Delivery is available throughout Latvia. To find out the terms of delivery, please contact us at: info@ecsoen.com or call us at +371 28454811.
